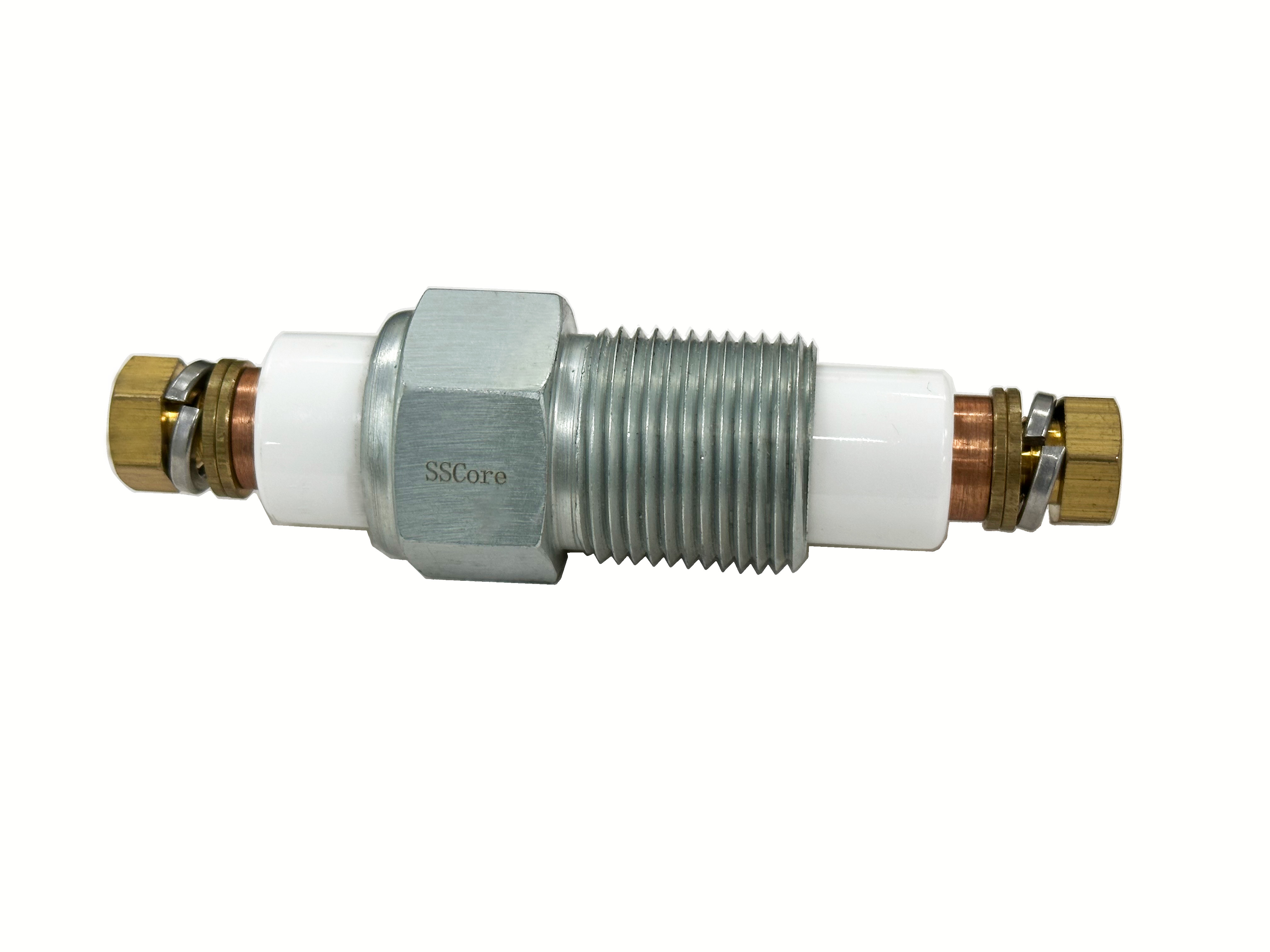

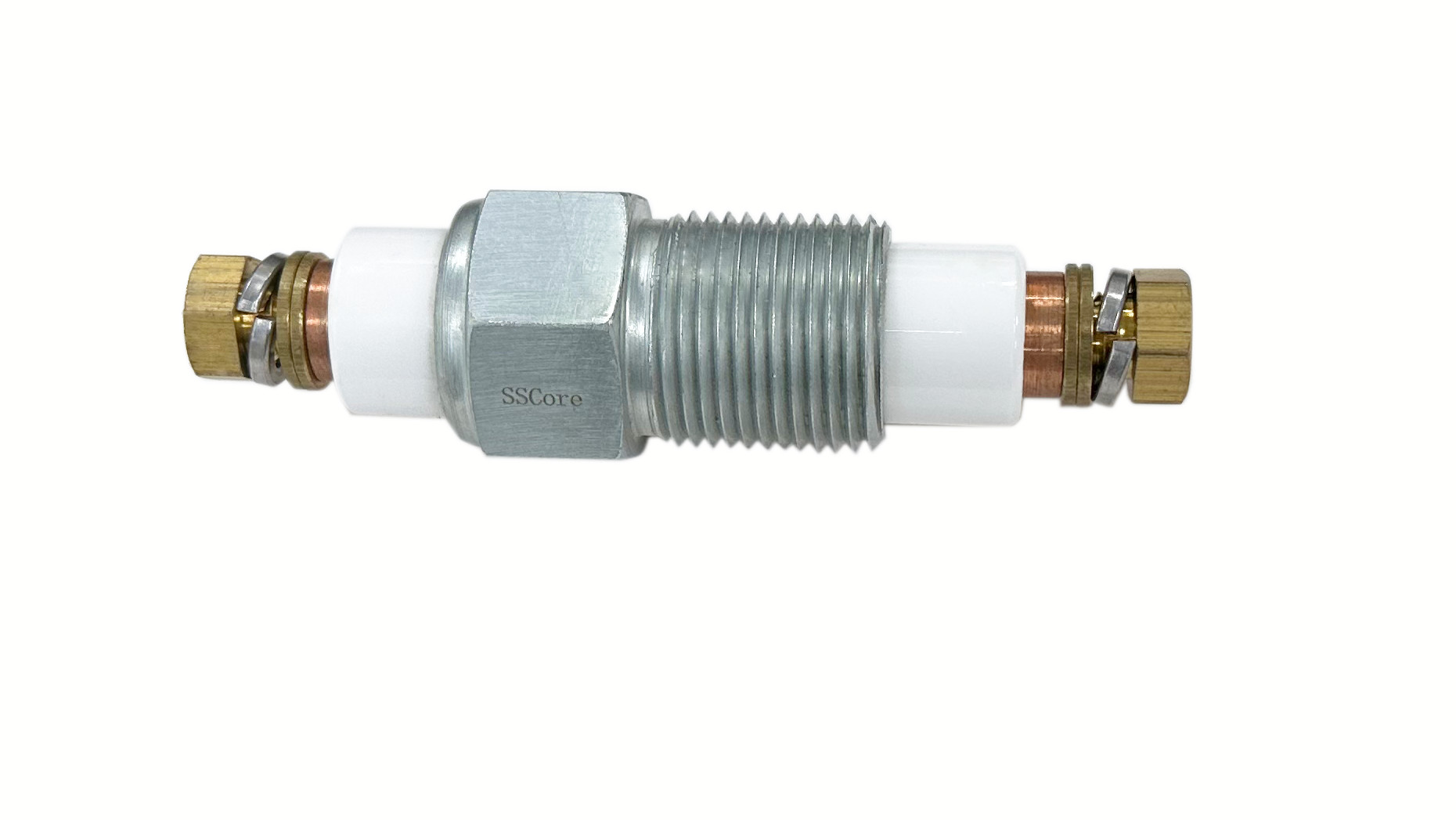

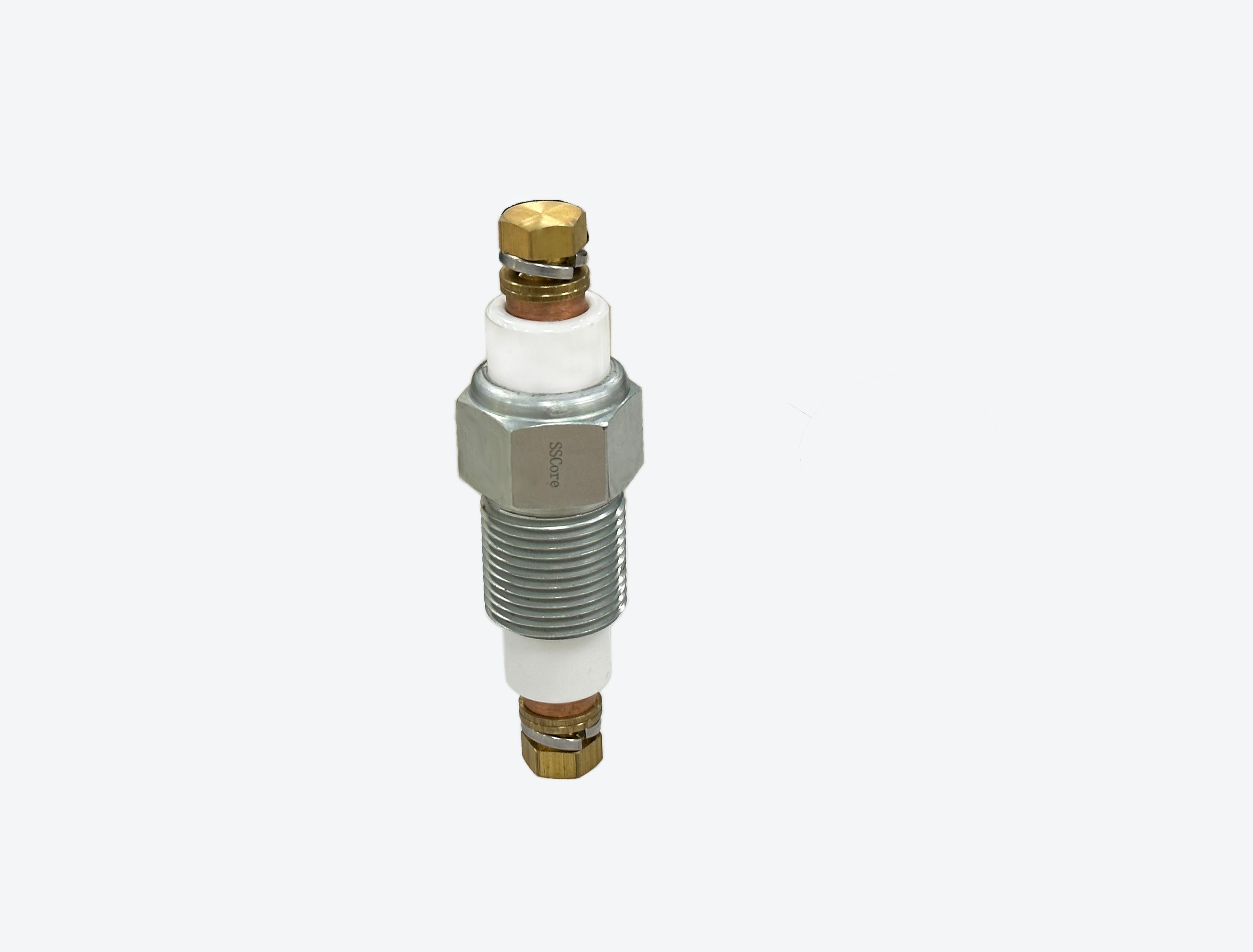

4MPa de vidrio a sello de metal
| High insulation performance: | Prueba estática en 500VDC, aislamiento mayor que 10000MΩ | High sealing performance: | 4MPa no se escapa |
| High voltage resistance: | ≥4000VAC, salida ≤0.5mA actual | Corrosion resistance: | Refiera al espray de sal GB/T2423.17 estándar, que puede alcanzar el nivel de 8 o arriba |
| Resistant to various refrigerant and refrigerant oil: | R114a, R410a, R22 y refrigerante del CO2 | Thermal shock resistance: | Puede mantener un funcionamiento normal en un entorno de menos 40 ℃ a 300 ℃ |
| High Light: | 4MPa de vidrio a sello de metal,Conectores herméticos de alimentación 4MPa |
||
El terminal de sellado sinterizado se utiliza principalmente en el compresor y desempeña el papel de sellado, aislante, conexión eléctrica resistente a tensión y presión
Conectores herméticos de alimentación por cable Níquel sin electro 0.5 mm-3.2 mm
SSCore Hermetic Cable Connectors Electroless Nickel Contact Plating Φ0.5mm-Φ3.2mm Core Column Product Description: Our company is able to customize sintered seal terminals to meet customer demands. The performance parameters our product offers are as following: 1. The material used is 45 Steel. 2. ...
Conectores herméticamente sellados de núcleo de 3.2 mm Feedthrough OEM 5MPa, sin fugas
Hermetic Feedthrough Terminals Core Φ0.5mm-Φ3.2mm Connector -70°C To 300°C Temperature Rating Product Description: We can offer a wide range of customizable sintered seal terminals based on our customers' needs. The performance parameters of our produced terminals are as follows: Material: 45 Steel ...
Conector hermético de mampara de acero SSCore 45 0,5 mm-3,2 mm Níquel sin electro
Product Description: We are able to manufacture sintered seal terminals according to customer specifications. The performance parameters of the terminals are as follows: Material: 45 Steel. Hi-pot: 3000v with a leak current of ≤ 0.5MA. IR: 1000V, with an IR of > 1000MΩ. Leak Test: 4MPa N2 pressure, ...
Vacuum To 10 Pressure Range Hermetic Seal Connectors Designed With Mounting Screw For Easy Assembly And Leak Proof Performance
Product Description: The Hermetic Feedthrough Connectors are precision-engineered components designed to provide reliable electrical connectivity in environments that demand airtight sealing and exceptional durability. These connectors are specifically crafted to maintain their hermetic integrity ...
