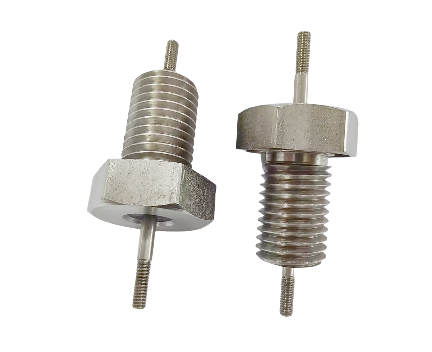

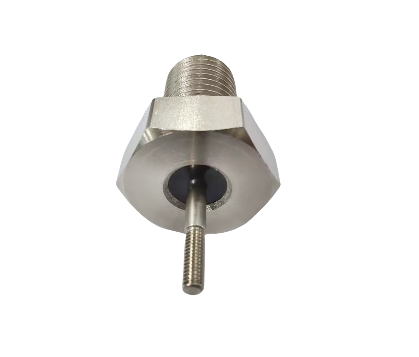

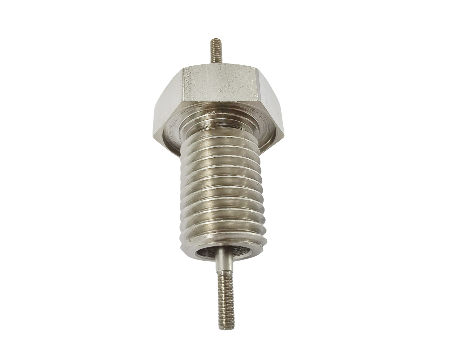

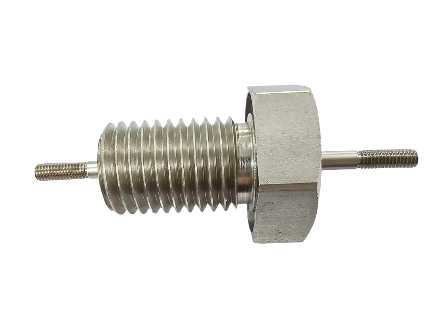

M4 Core Column Hermetic Single Seal Terminals Featuring SUH446 Stainless Steel Pin Material Providing Electrical Sealing

Product Description:

The Hermetic Single Seal Terminals are precision-engineered components designed to provide reliable and efficient electrical sealing solutions for a variety of applications. With a robust construction and high-performance materials, these terminals are ideal for use in environments where maintaining insulation integrity and mechanical durability are critical. One of the standout features of this product is its exceptional insulation resistance, rated at 1000MΩ@1000VDC, ensuring minimal electrical leakage and maximum safety in operation.

These terminals feature a straight termination style, which simplifies installation and integration into existing systems. The straight termination design allows for straightforward wiring and connection, reducing assembly time and potential errors. This makes the Hermetic Single Seal Terminals highly versatile and suitable for a broad spectrum of industrial and commercial applications.

The pin material used in these terminals is SUH446 stainless steel, a high-grade alloy known for its excellent mechanical strength, corrosion resistance, and durability. SUH446 stainless steel ensures that the terminals can withstand harsh environmental conditions, including exposure to moisture, chemicals, and temperature fluctuations, without compromising performance. This material choice is particularly beneficial in applications involving component mechanical seals, where maintaining a secure and stable connection is essential to prevent leaks and ensure system reliability.

The product is rated to carry a current of up to 30A, making it capable of handling substantial electrical loads safely and efficiently. This current rating supports its use in demanding applications such as air cylinder seals and hydraulic cylinder seals, where robust electrical connections are necessary to control and monitor the operation of pneumatic and hydraulic systems. The ability to carry higher current loads broadens the scope of this terminal’s applicability across various industrial sectors.

Another critical aspect of the Hermetic Single Seal Terminals is the use of 48# glass material for the sealing component. The glass seal provides an airtight and hermetic barrier that prevents contaminants such as dust, moisture, and gases from entering the connection area. This glass-to-metal sealing technique enhances the terminal's reliability and longevity, ensuring consistent performance even in challenging environments. The use of 48# glass material is a testament to the product’s focus on maintaining high insulation resistance and mechanical stability.

These hermetic terminals are particularly well-suited for use in component mechanical seals, where preventing leakage and maintaining pressure integrity are paramount. In applications involving air cylinder seals, the terminals deliver dependable electrical connections that support the precise control of pneumatic actuators, enhancing system efficiency and responsiveness. Similarly, in hydraulic cylinder seals, these terminals help ensure reliable operation by providing stable electrical pathways that withstand the pressures and dynamic conditions typical of hydraulic systems.

Overall, the Hermetic Single Seal Terminals combine high insulation resistance, durable materials, and a practical termination style to offer a dependable solution for electrical sealing needs. Their compatibility with component mechanical seals, air cylinder seals, and hydraulic cylinder seals makes them an essential component in various industrial applications where electrical isolation and mechanical integrity are crucial. By choosing these terminals, users benefit from enhanced system reliability, ease of installation, and long-term performance, making them a preferred choice for engineers and technicians working in demanding environments.

Features:

• Product Name: Hermetic Single Seal Terminals
• Glass Material: 48#
• Body Material: C20 Steel
• Core Column Size: M4
• Insulation Resistance: 1000MΩ@1000VDC
• Leak Test: 4.0 MPa with N2, No Leak
• Designed for use in Pump Mechanical Seal applications
• Ensures reliable sealing and electrical insulation in Hermetic Single Seal Terminals

Technical Parameters:

Applications:

The Hermetic Single Seal Terminals by SSCore are engineered for high-performance applications where reliability and durability are paramount. With a rated current of 30A and a straight termination style, these terminals are ideal for use in various industrial and mechanical systems. Certified under IATF16949, SSCore guarantees stringent quality control and manufacturing standards, ensuring each unit meets the highest expectations.

These hermetic terminals are especially suitable for sealing solutions in Fristam pump seals, offering exceptional leak prevention with a leak test rating of 4.0 MPa using nitrogen, confirming zero leakage. This makes them an excellent choice for industries requiring robust sealing performance, such as chemical processing, pharmaceutical manufacturing, and food and beverage production.

In addition, the Hermetic Single Seal Terminals are perfectly compatible with cylinder seal kits and other component mechanical seals, providing a reliable and corrosion-resistant termination point. Their core column size of M4 ensures a secure and stable connection, enhancing overall system integrity. Packaged in vacuum-sealed packaging, these terminals maintain their pristine condition during storage and transportation.

SSCore offers these terminals with a minimum order quantity of 5 pieces, priced between 10 to 40 ￥ each, making them accessible for both small-scale and large-scale manufacturing needs. The supply ability of 50,000 pieces per month ensures steady availability to meet ongoing production demands. Delivery time ranges from 7 to 14 workdays, enabling timely project completion.

Payment terms are flexible, accepting L/C, D/A, T/T, and D/P, facilitating smooth business transactions. Manufactured by SSCore, a trusted name in the industry, these hermetic single seal terminals are designed to provide long-lasting performance and dependable sealing solutions in various mechanical and industrial applications.

Customization:

SSCore offers customized Hermetic Single Seal Terminals designed to meet your specific requirements. As a certified manufacturer under IATF16949, we ensure the highest quality standards in every product. Our Hermetic Single Seal Terminals feature a rated current of 30A, with a straight termination style and durable 48# glass material for reliable insulation. The core column size is M4, ideal for various applications involving component mechanical seals and hydraulic cylinder seals.

We provide flexible order quantities starting from a minimum of 5 pieces, with competitive pricing ranging between 10 to 40 ￥ per unit. Each product is carefully packed using vacuum packaging to maintain integrity during transit. SSCore guarantees prompt delivery within 7 to 14 workdays, supported by a supply ability of 50w pieces per month to fulfill large-scale demands.

Our payment terms include L/C, D/A, T/T, and D/P to facilitate smooth and secure transactions. Trust SSCore for reliable Hermetic Single Seal Terminals and comprehensive product customization services tailored to your needs in component mechanical seals and hydraulic cylinder seals applications.

Support and Services:

Our Hermetic Single Seal Terminals are designed to provide reliable and durable sealing solutions for critical applications. To ensure optimal performance, it is important to follow proper installation and maintenance guidelines. Always handle the terminals with care to avoid damage to the sealing surfaces.

For technical support, please refer to the product manual which includes detailed instructions on installation, wiring, and troubleshooting. Our support team is available to assist with any technical inquiries or issues that may arise during the use of the Hermetic Single Seal Terminals.

Regular inspection and cleaning of the terminals are recommended to maintain their hermetic integrity and prevent contamination. Use appropriate cleaning agents that do not compromise the sealing materials.

In case of product malfunction or failure, please consult the troubleshooting section of the documentation before contacting support. Providing detailed information about the operating conditions and the issue will help in delivering effective assistance.

We are committed to ensuring the highest quality and performance of our Hermetic Single Seal Terminals through continuous product support and service. For additional resources and updates, please visit our official website.

Packing and Shipping:

Our Hermetic Single Seal Terminals are meticulously packaged to ensure maximum protection during transit. Each terminal is individually sealed in anti-static, moisture-resistant packaging to prevent any damage or contamination. The products are then securely placed in custom-designed boxes with adequate cushioning materials to absorb shocks and vibrations.

For shipping, we use reliable carriers that offer tracking and insurance options to guarantee safe and timely delivery. Our logistics team carefully handles all orders, ensuring that each package is labeled correctly with all necessary handling instructions. Whether shipping domestically or internationally, we prioritize the integrity and prompt arrival of our Hermetic Single Seal Terminals to meet your project timelines.

FAQ:

Q1: What brand manufactures the Hermetic Single Seal Terminals?

A1: The Hermetic Single Seal Terminals are manufactured by the brand SSCore.

Q2: Are the Hermetic Single Seal Terminals certified?

A2: Yes, these terminals are certified under the IATF16949 standard.

Q3: What is the minimum order quantity for these terminals?

A3: The minimum order quantity for Hermetic Single Seal Terminals is 5 pieces.

Q4: How are the Hermetic Single Seal Terminals packaged?

A4: The terminals are packaged using vacuum packaging to ensure quality and protection.

Q5: What are the payment terms and delivery time for these terminals?

A5: Payment terms accepted include L/C, D/A, T/T, and D/P. Delivery time typically ranges from 7 to 14 working days.

Q6: What is the price range and supply ability of the Hermetic Single Seal Terminals?

A6: The price ranges from 10 to 40 ￥ per piece, and the supply ability is 50,000 pieces per month.
