Conector hermético EV personalizado Terminal de aire acondicionado Puestos de tres pines
| High insulation performance: | Prueba estática en 500VDC, aislamiento mayor que 5000MΩ | High sealing performance: | 2.5MPa no se escapa |
| High voltage resistance: | ≥2000VAC, salida ≤0.5mA actual | Corrosion resistance: | Refiera al espray de sal GB/T2423.17 estándar, que puede alcanzar el nivel de 8 o arriba |
| Resistant to various refrigerant and refrigerant oil: | R114a, R410a, R22 y refrigerante del CO2 | Thermal shock resistance: | Puede mantener un funcionamiento normal en un entorno de menos 40 ℃ a 300 ℃ |
| Working current: | 72V-810V | ||
| High Light: | Conector eléctrico hermético personalizado,Conector eléctrico hermético de tres pines |
||

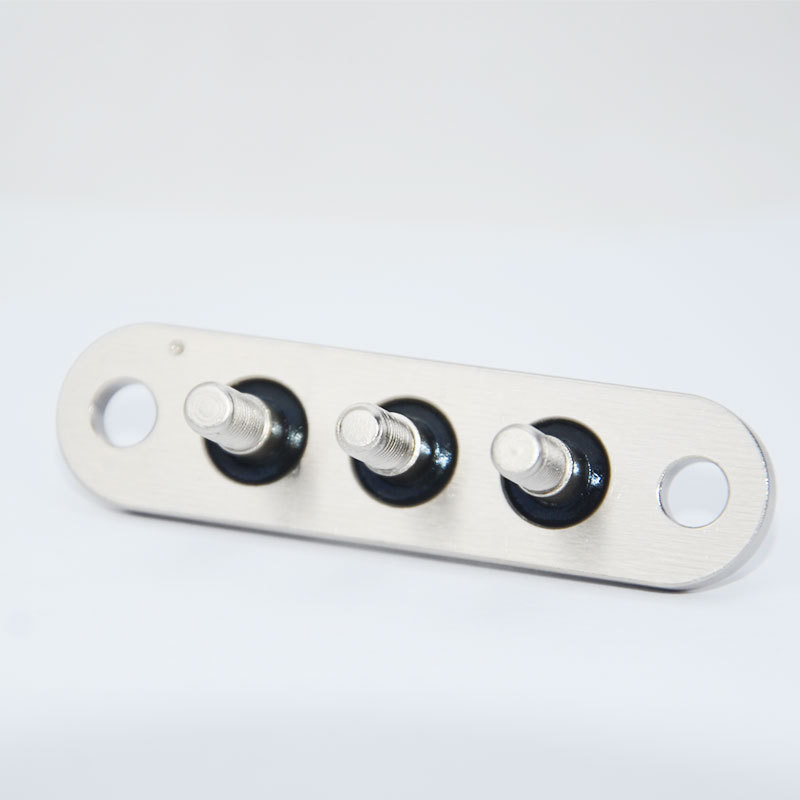

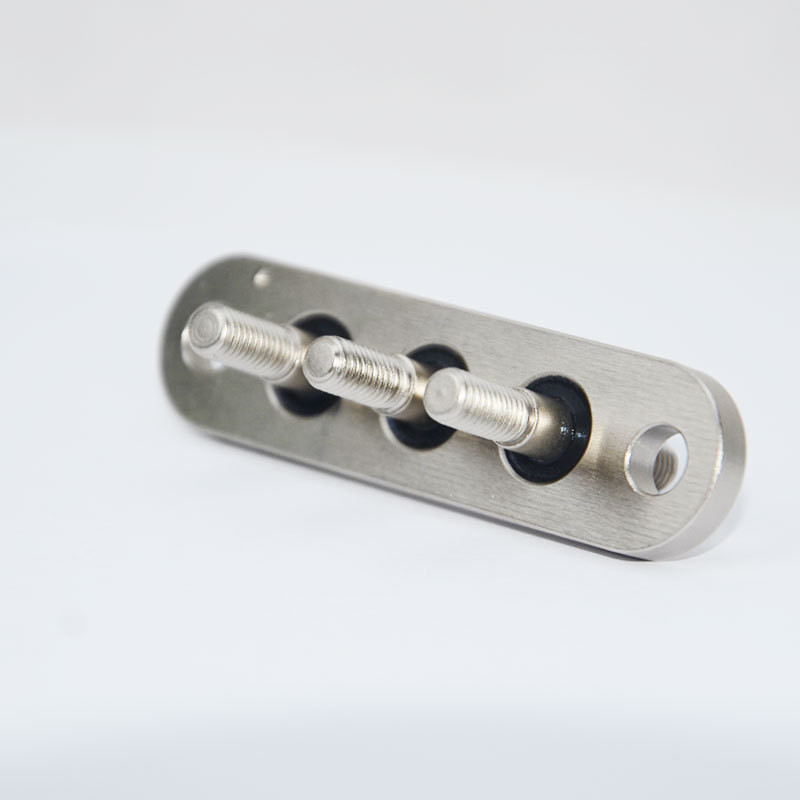

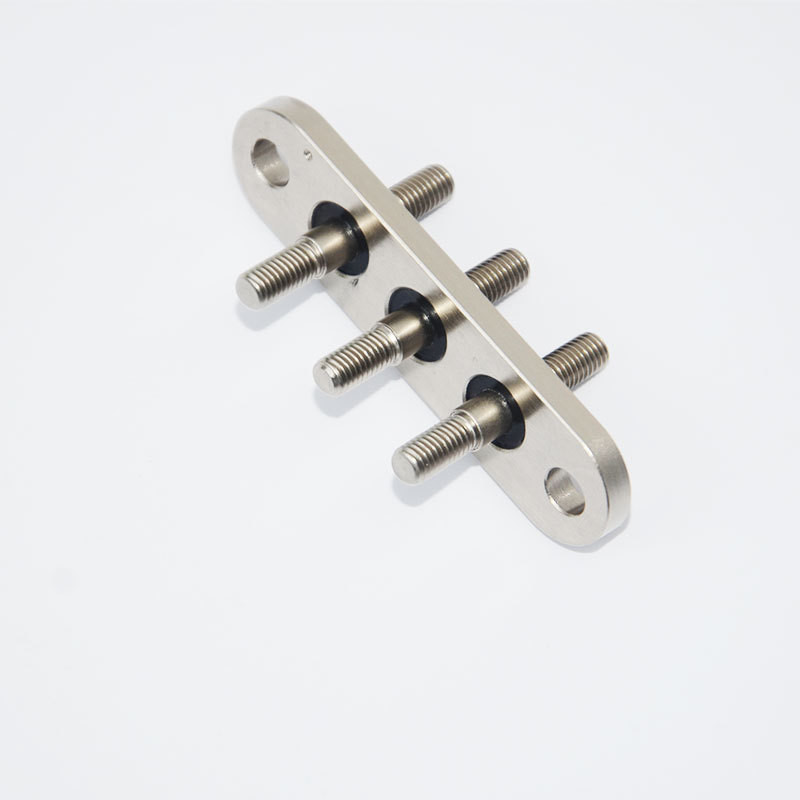

Los puntos de terminales de aire acondicionado para vehículos eléctricos [Tres pines]
El poste terminal sellado sinterizado se utiliza principalmente en el compresor de 72V-810V del aire acondicionado de automóviles, desempeñando el papel de sellado, aislante,conexión eléctrica resistente al voltaje y a la presión
